Autojack Fusion Welding Range – Sale On Selected Welders
With limited time on our Fusion Welder sale, check out all of our Autojack Fusion Welder Range and the spec of our different machines with some insight into our Ultimate Guide To Welding worth £12.99.
Whether you’re a novice or an expert at welding, it’s always helpful to get the best advice when making a welding purchase. There are many things to consider, which will all be outlined in this post. When purchasing one of our welders, to give you a further helping hand, we give you a specifically designed manual straight from the guys who made it which is worth £12.99. Check out a summary of our welders below and all of the spec to help you make an informed decision on your welder, as well as some information on the different types of welding. Although it comes free when purchasing a welder, you can also buy the Ultimate Guide To Welding on our website which goes into further detail about our welders and the different types of welding.

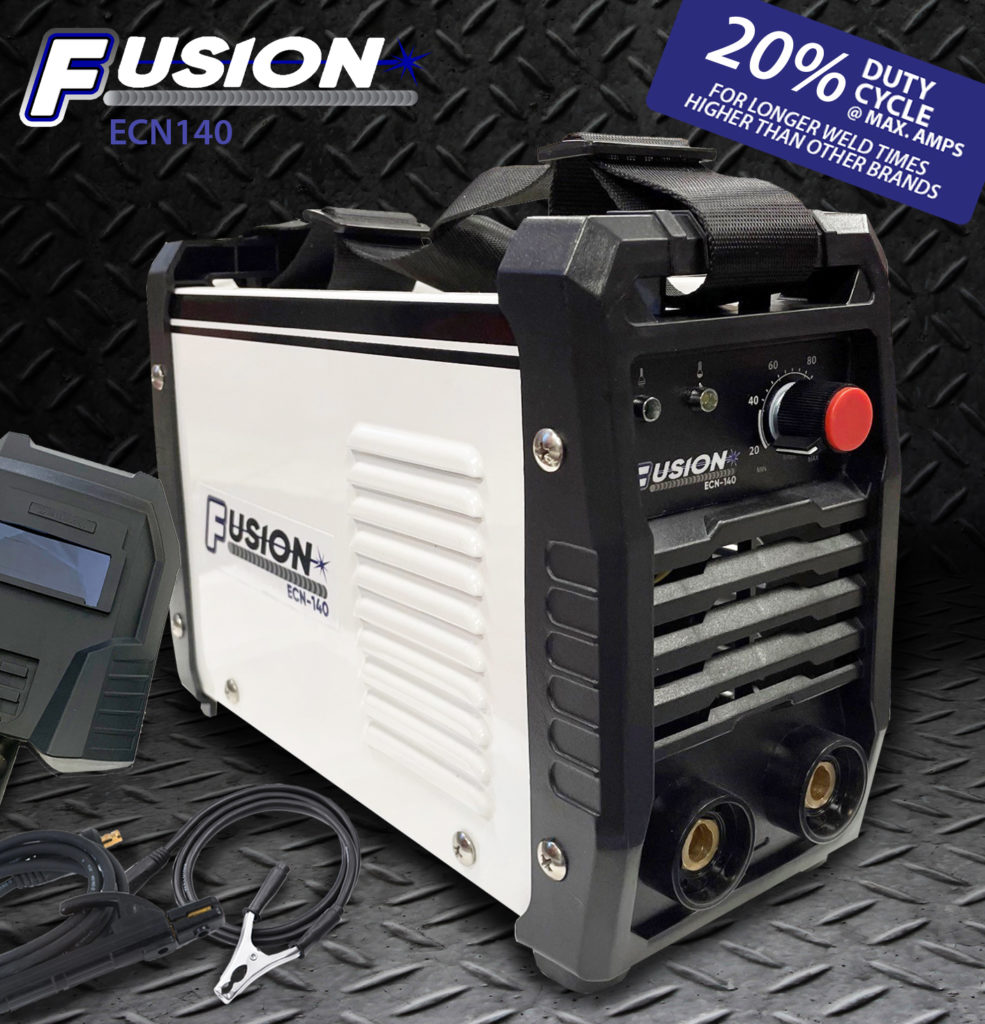

AUT01044 ECN-140 Inverter DC ARC Welder 20% duty cycle @ max amps.
Plug Included
The ECN-140 is the newest member of our welding team, and it is exclusive to Autojack. The impressive amp range of between 20amps and 140amps allows work on motors, homes, or workshops including sill work. It has variable power settings and has a welding max capacity of 5mm on steel with a 20% duty cycle at max amps for longer weld times. The welder can be operated by using a 13amp plug and has easily accessible amp control. The electrode size for this welder is 1.6mm-3.25mm.
With this welder, you will receive a Face mask, 1.8M 200A Electrode Holder, 1.2M 300A Earth Clamp, Helmet, Brush, and Hammer.

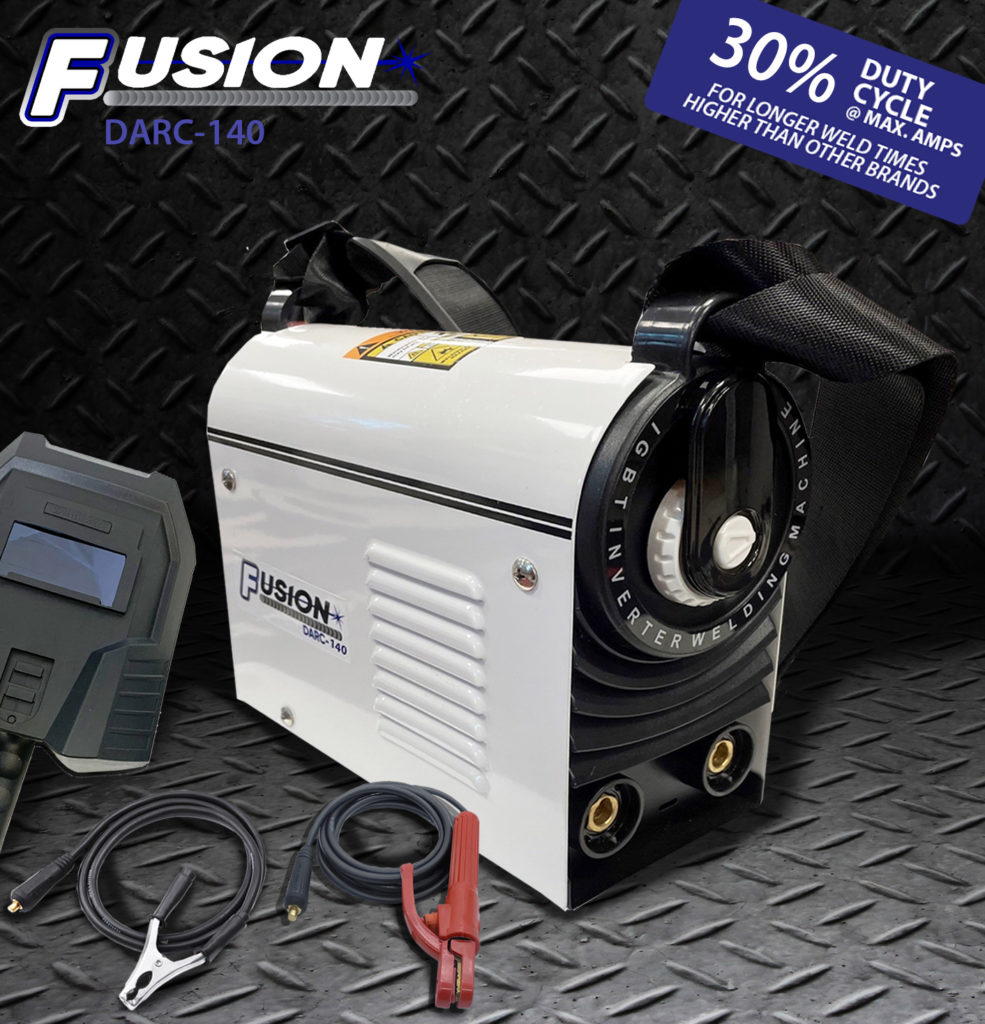

AUT01042 Darc-140 MMA/Lift TIG Inverter Welder 30% duty cycle @ max amps.
Plug not included
The Darc-140 compromises both an ARC welder and a lift TIG welder in one. It’s powered by inverter technology and has a far longer rated duty cycle than standard welders in the market with 30% at max amps. It has a one-touch display, anti-stick circuitry, and operates a scratch-Tig function. This welder can use a 13amp or 16amp plug and has a welding current of 20amp-140amp continuous. The maximum welding capacity for this welder is 5mm on mild steel, and the electrode size is 1.6mm-3.25mm.
With this welder, you will receive a 1.8M 200A Electrode Holder, 1.2M 300A Earth Clamp, Helmet, Brush, and Hammer
AUT01043 Darc-160 MMA/Lift TIG Inverter Welder 30% duty cycle @ max amps.
Plug not included
Stepping up from its little sibling, the DARC-160 holds the same functions as the DARC-140, it is lightweight and portable, as well as multi-functioning just like the 140. Again it has a 30% duty cycle at max amps and has anti-stick circuitry for easy and quick electrode removal, and scratch-TIG function for a quick start. The difference with this machine is that the welding current can be extended from 20amp-160amp continuous. The maximum welding capacity on this welder is 6.5mm, and its electrode size is 1.6mm-4mm.
With this welder, you will receive a 1.8M 200A Electrode Holder, 1.2M 300A Earth Clamp, Helmet, Brush, and Hammer

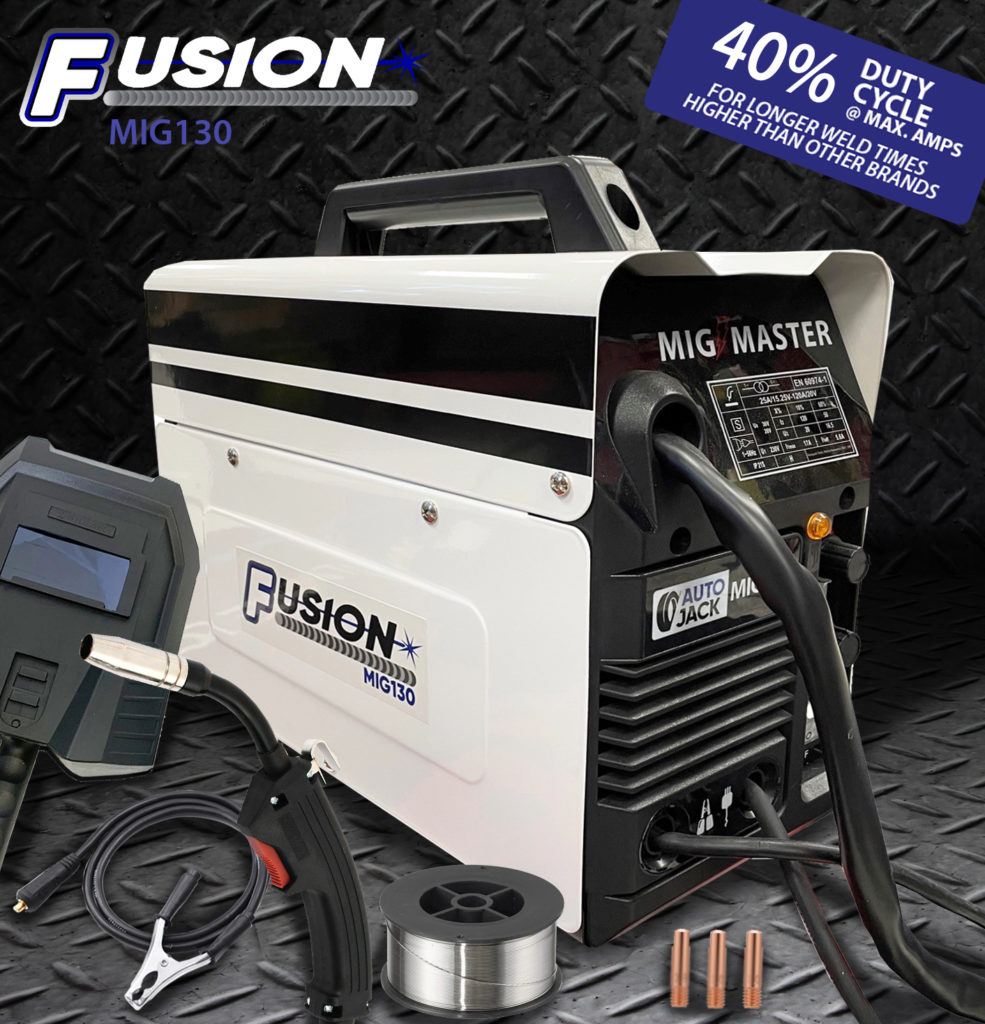

AUT00007 Fusion MIG130 Gasless MIG Welder 40% duty cycle @ max amps.
Plug Included
The Fusion MIG130 uses only flux-cored wire making it perfect for welding outdoors and is more tolerant of surface contamination. This welder has 4 power settings and a carriable speed wire motor for easier use of the machine. With an amp range of between 20amp-120amp, it’s ideal for automotive projects, household and workshop welding jobs. Its welding current is from 20amp-120amp and has a duty cycle of 40% at 90amps. The maximum welding capacity of this welder is 4mm.
With this welder, you will receive a Welding Mask, Flux Cored Welding Wire, Wire Brush, Chipping Hammer, and 3 Welding Tips

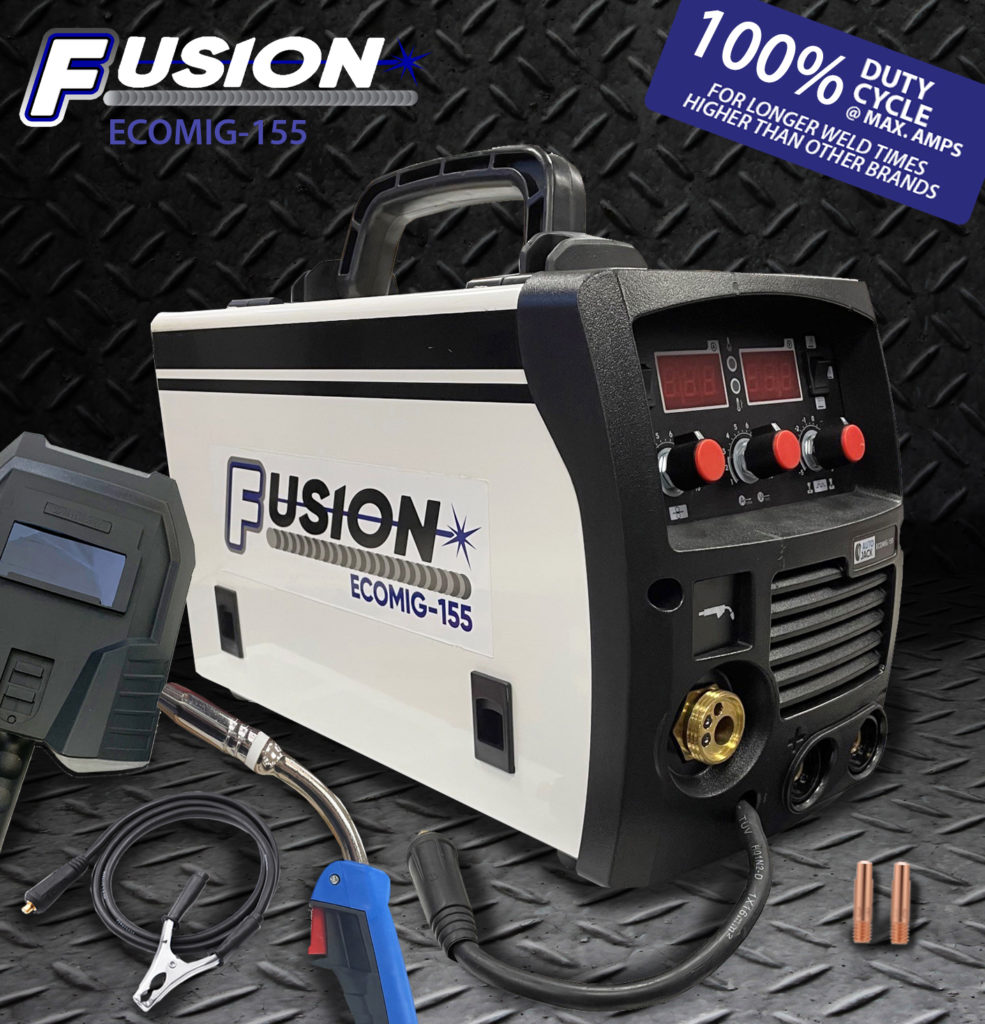

AUT01045 ECO-MIG 155 3-in-1 MIG/ARC/Lift TIG Inverter Welder.
Plug Included
The ECO-MIG 155 combines MIG/MMA/TIG (DC) all in one. It’s powered by inverter technology, powered to offer a high duty cycle on all functions for the majority of your welding needs. Powered by inverter technology, compact lightweight, and portable with power to offer high duty cycle on all functions allowing you to weld most metals from stainless steel to copper. This welder has a 100% duty cycle at 77amps, 60% at 120amps, and 30% at 140amps. The maximum welding capacity of this welder is 5mm and the electrode sizes are 1.6mm-3.25mm.
With this welder, you will receive a 1.8Mtr 200A Electrode Holder, 1.2Mtr 200A Earth Clamp, Mask, Brush, 15AK MIG Welding Torch, Contact 0.6/0.8 (1 of each)

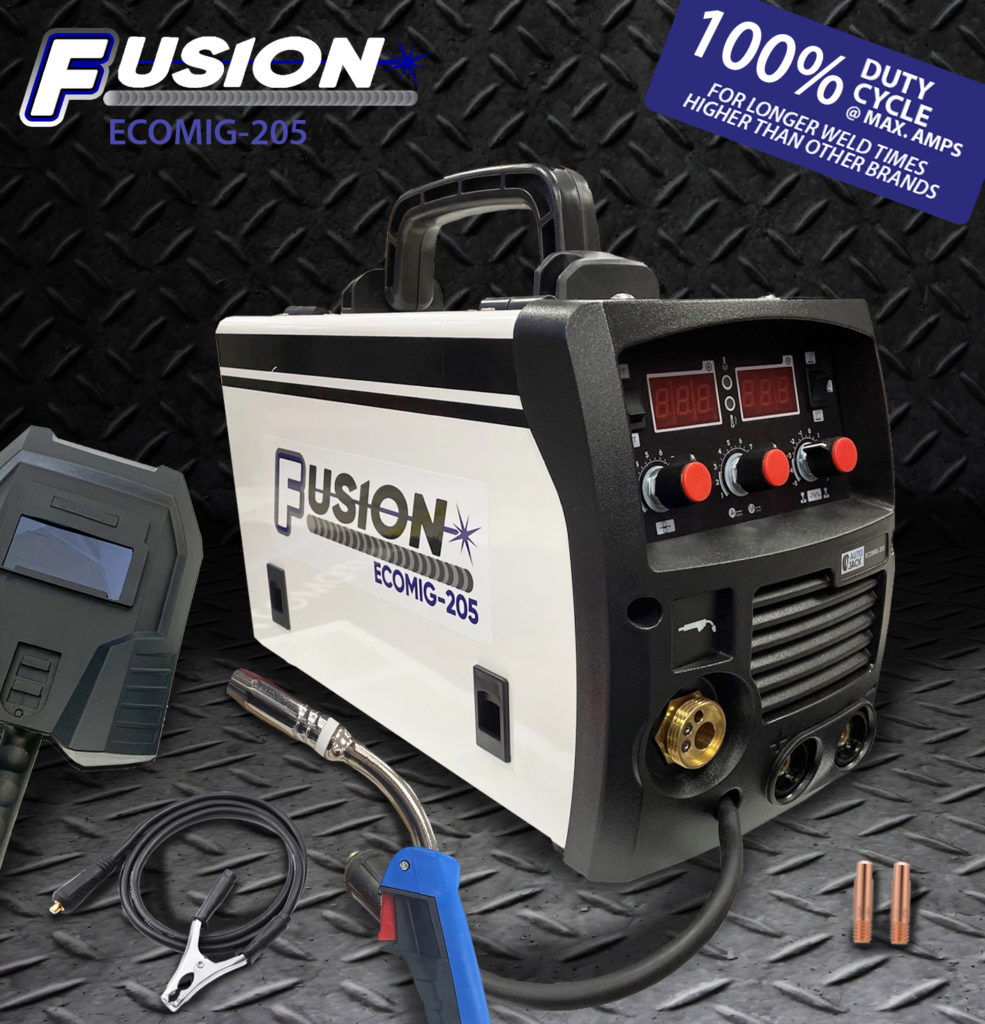

AUT01046 ECO-MIG 205 3-in-1 MIG/ARC/Lift TIG Inverter Welder.
Plug not included
The ECOMIG 205 has 3 features in one. It combines MIG/MMA/TIG (DC) making it ideal for a majority of welding needs. This welder is powered by inverter technology and has the power to offer a high duty cycle on all functions allowing you to weld most metals from stainless steel to copper. This welder is powered by a 16amp plug (not included) and has a rated duty cycle of 100% at 100amps, 60% at 128amps, and 30% at 180amps. It comes with a maximum welding capacity of 6.5mm.
With this welder, you will receive a 1.8Mtr 200A Electrode Holder, 1.2Mtr 200A Earth Clamp, Mask, Brush, 25AK MIG Welding Torch, Contact 0.6/0.8 Tips (1 of each)

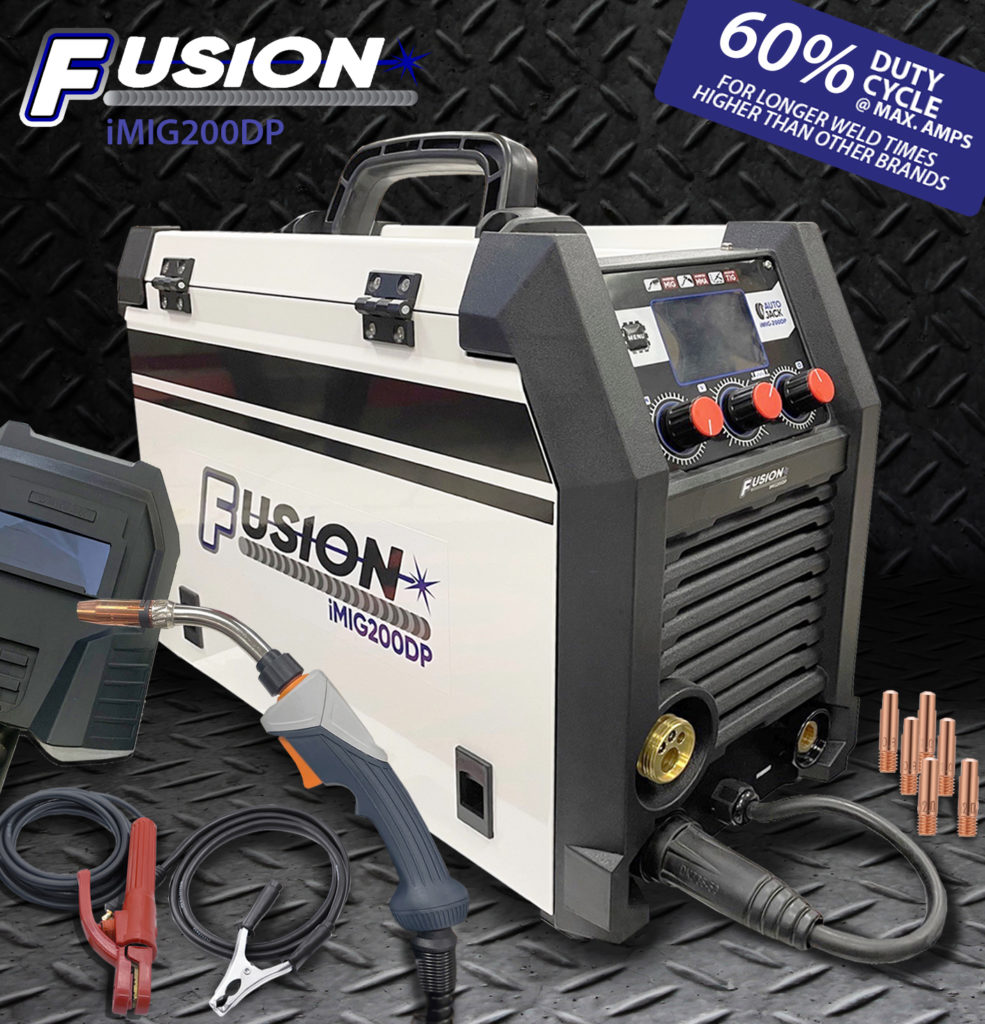

AUT01048 iMIG200DP Inverter Welder Multi-Process MIG/MMA Inverter Welder 60% duty cycle @ max amps.
Plug not included
The iMIG200DP is a multi-functioning MIG welder which also combines an MMA welder into one unit. This welder allows you to do standard MIG, pulse MIG, and double pulse MIG welding making it ideal for aluminum and copper as well as mild and stainless steel. It has an easy-to-use digital display and synergic capabilities and has hot start and anti-stick features for ease of use. This welder is powered by a 16amp plug (not included) and is ideal for both the hobbyist and professional alike.
With this welder, you will receive a 3 Metre SN24 MIG torch, 1.8 Metre 300amp Electrode Holder, 1.2 Metre 300amp Earth Clamp, A Steel Liner, Chipping Hammer, Gas Pipe Clamps, 6 Contact Tips 0.8/1.0/2.00mm (2 of each), and a V-Type Roller (0.8/1.0mm)

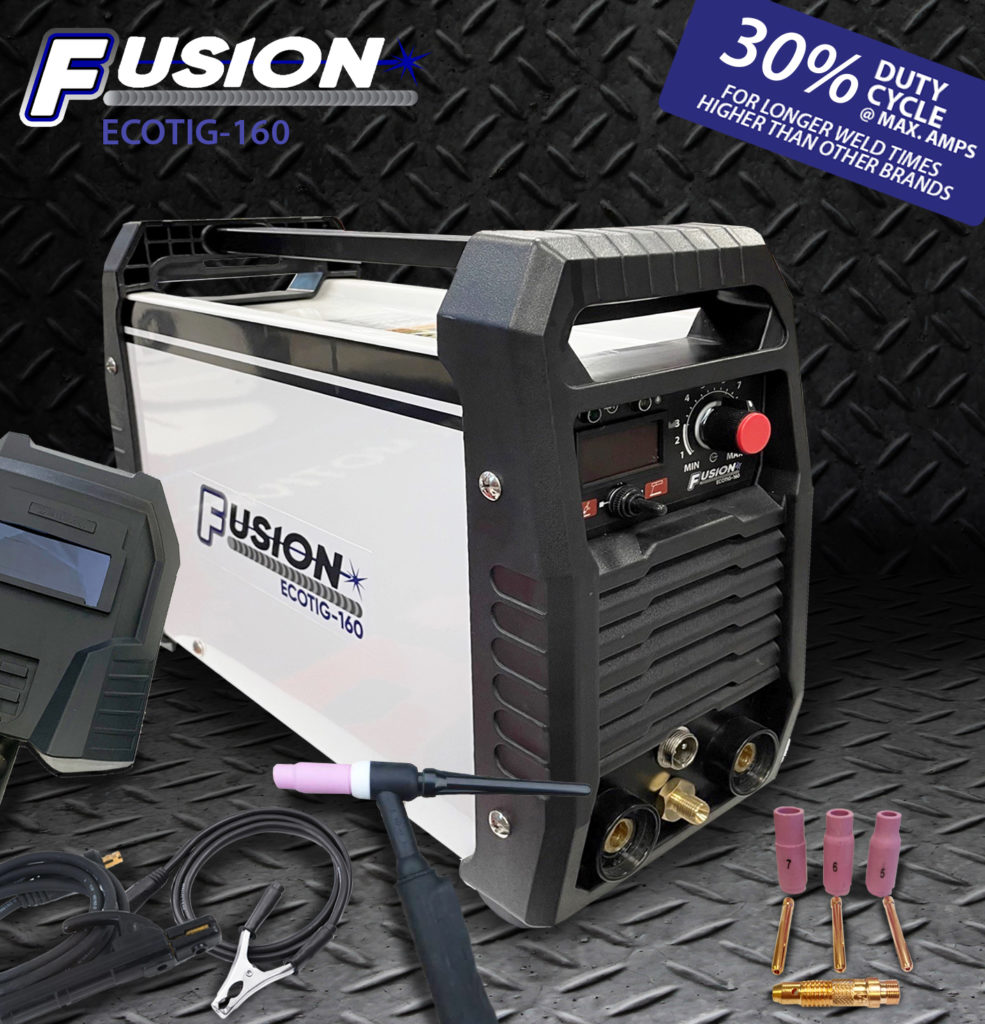

AUT01047 ECOTIG-160 TIG & MMA Inverter Welder 30% duty cycle @ max amps.
Plug not included
The ECOTIG-160 inverter DC is a dual-purpose machine allowing you to do both gas TIG welding and also MMA. This uses an arc that is produced by a tungsten electrode and workpiece to melt metal. This type of welding can be used on metals such as alloy steel, copper, Cr-Mo, stainless steel, and many more. The welder comes with a 30% duty cycle at max amps and is powered by a 16amp plug (not included).
With this welder, you will receive a 3 meter WP17 TIG Torch, 1.8 Metre Electrode Holder, 1.2 Metre Earth Clamp, Brush, Hammer, and a Handheld Welding Mask

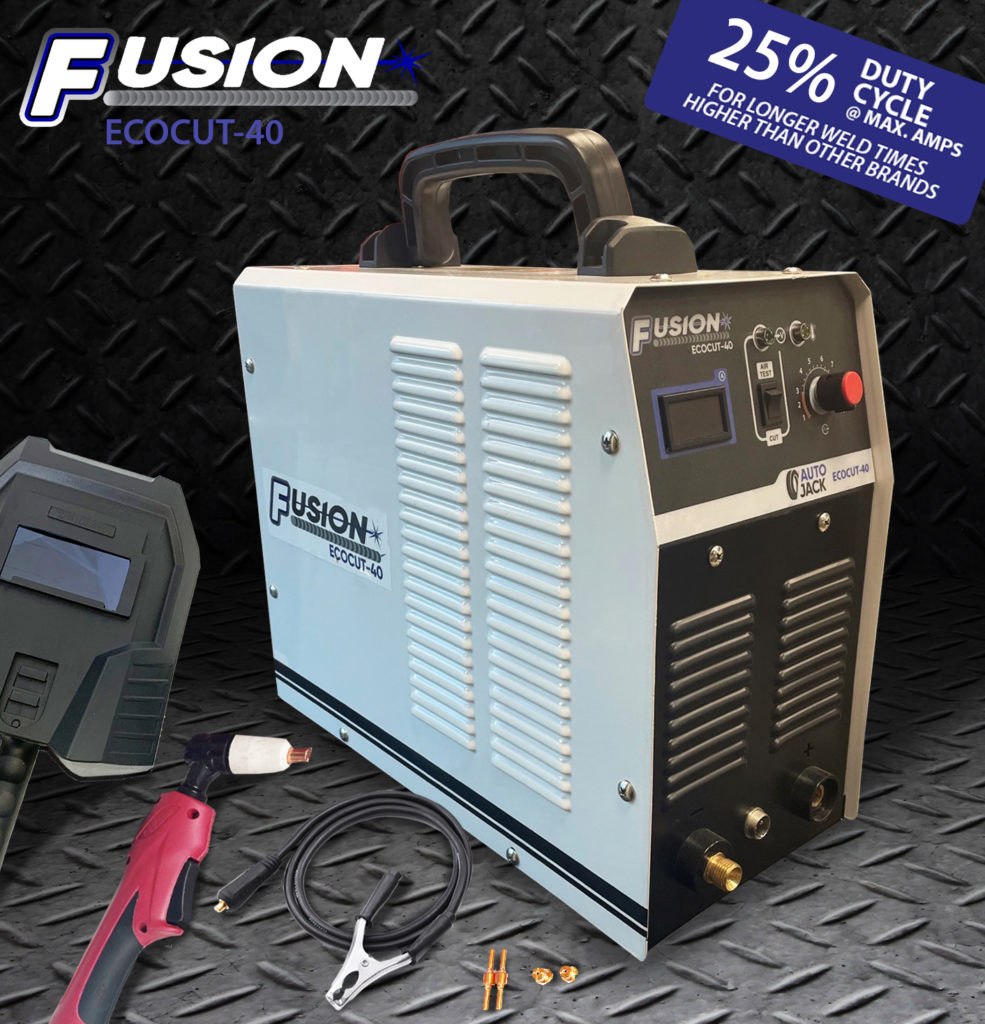

AUT01041 ECOCUT-40 Plasma Cutter Integrated Air Compressor 25% duty cycle @ max amps.
Plug not included
The ECOCUT-40 is a new product that is exclusive to Autojack Tools. It comes built-in with an air compressor, plasma torch, and earth clamp. It uses the latest inverter technology to make clean cuts of up to 15mm mild steel. It uses a 16amp plug (not included) and is ideal for both beginners and professionals. This machine has a 25% duty cycle at max amps and has a maximum cutting capacity of 15mm. The air pressure is 0.15Mpa-0.25Mpa (22 psi – 36 psi)
With this welder, you will receive a Link Lead, Plasma Torch, Set of Consumables for Plasma Torch, Wire Brush, Earth Cable with Clamp, and a Handheld Mask

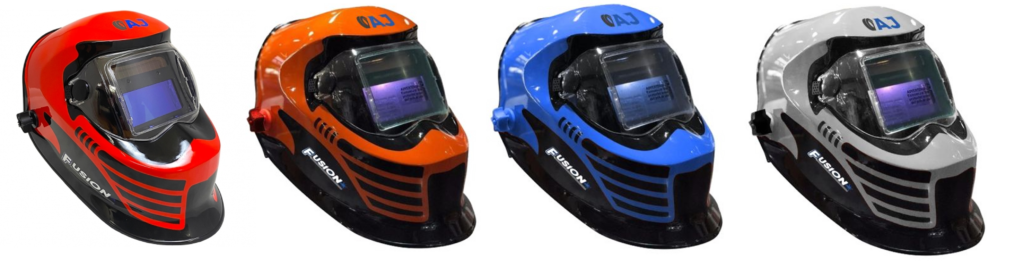

Autojack Fusion Welding Helmets
The solar-powered auto-darkening Welding Helmets are suitable for most welding applications. These have a 1/25,000 second switch time, and automatically darken the moment you start welding. With a variable shade setting of DUN 9-13, these helmets cover MIG/TIG and MMA welding and also have a low to high sensitivity control. They also have a DIN 4 setting making them ideal for grinding as well. These are available in 4 colors and also come as part of Package Deals with your welder purchase
What are the different types of welding?
MIG
The Metal Insert Gas welding (MIG) process uses electricity to melt and join pieces of metal. The MIG process is usually versatile and can be used to weld many different metals. MIG welding can be used for jobs on carbon steel, stainless steel, aluminum, and more.
As well as many other alloys. For professional and amateur welding, MIG welding is the best solution for most but not all jobs. MIG welding is similar to the ARC welding process but it does not require welding rods, making it more refined and suited to the welding of very thin sheet metals, for example, car body panels.
ARC
ARC welding fuses two or more pieces of metal together by an electrical arc formed by current flowing directly across the gap between the metal being welded and an arc welding rod. ARC welding uses high operator input so overall uses inexpensive equipment, and it can use specialist electrodes allowing your work to be more versatile.
MMA
MMA welding (Manual Metal Arc) is a frequently used welding technique. It involves making an arc between a workpiece and a metal-coated electrode. This form of welding can produce more power than MIG welding.
TIG
TIG (Tungsten Insert Gas) is much like ARC and MIG welding. An arc is formed between an electrode and workpiece as in ARC, and shielding gas is used as in MIG welding. TIG welding is very detailed, disciplined, and capable of giving high-quality welds on most types of metal. The process does include more practice and skill as opposed to the others. Advantages of TIG welding include it is very adaptable and allows very good control. As well as that, there are no sparks or spatter to clean and low fumes. It can also weld very thin metals.
What is Duty Cycle?
Duty Cycle is the percentage of time that a machine will weld safely at a given current before it will switch to thermal overload and cool down. for example, a duty cycle of 180amps at 30% will output 180amps for 3 minutes before it overheats within a 10 minute time period. A cooling period must then be maintained before continuing operation. At lower amperage, the duty cycle of the machine should increase.
